08. 电源管理 - PowerTOP

PowerTOP 是个分析、监控电力消秏的节能工具程式，它是由 Intel 于 2007 年以 GPLv2 授权释出的开放原始码专案。我们可以使用它找出 GNU/Linux 上秏电的套件，并透过停用不必要的功能以达到省电的效果，是笔记型电脑 (Laptop) 必装的实用工具。


▲ PowerTOP 的起始画面。

开始前请先安装 powertop。

  1. # Debian, Ubuntu
  2. $ sudo aptitude install powertop
  4. # CentOS, RHEL, Fedora
  5. $ sudo yum install powertop
  7. # Arch Linux
  8. $ sudo pacman -S powertop

请使用方向键 ← → 切换至 Tunables 分页，并使用 ↑ ↓ 上下移动，于欲调校的项目按下 Enter 进行调校，当所有状态显示为 Good 后即可按下 q 离开。2013-09-25-powertop-02.png

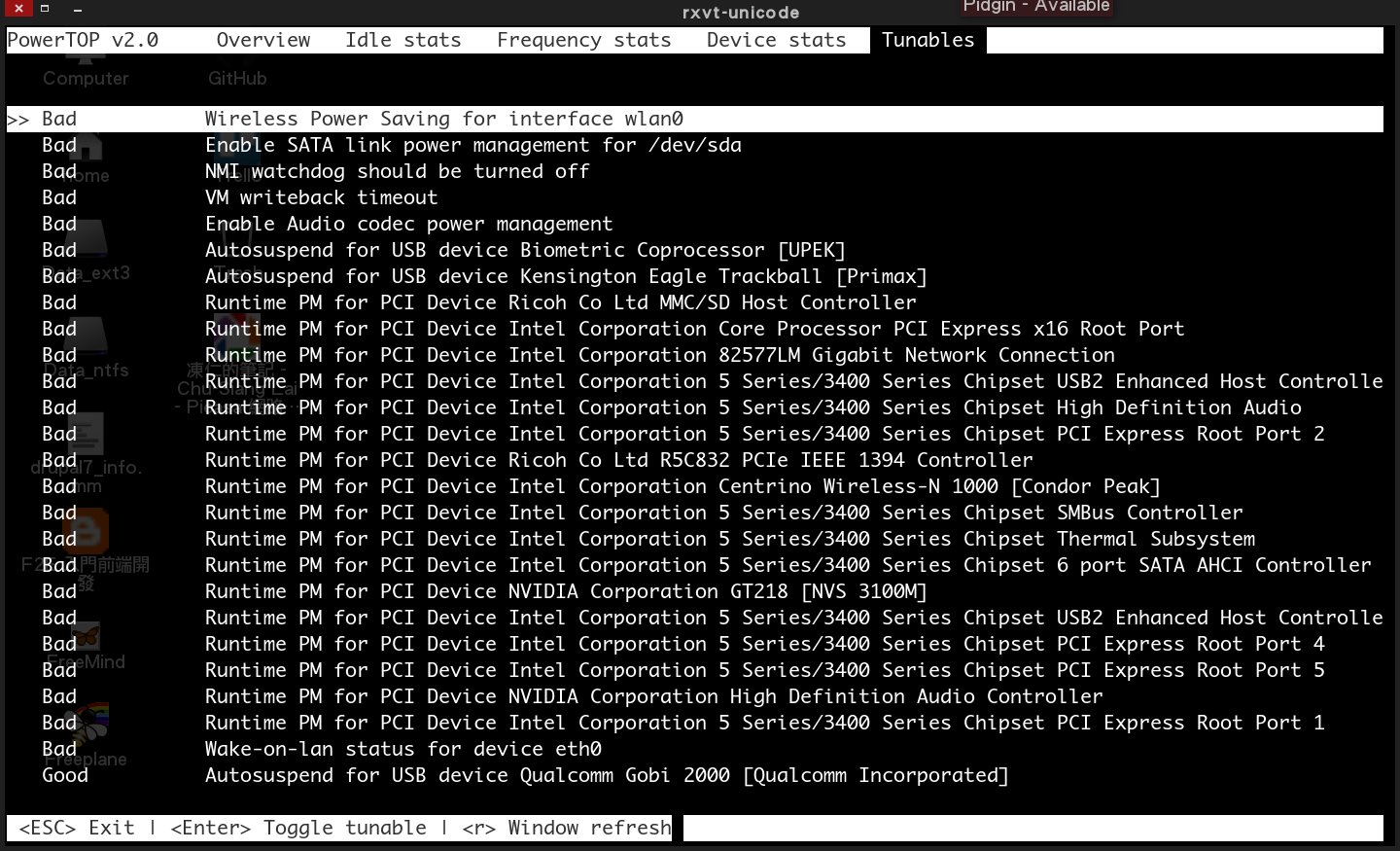

▲ 调校前的 Tunables。


▲ 调校后的 Tunables。

PowerTOP 本身并无储存功能，但我们可以借由 powertop '--html' 产生的报告来调校系统，甚至于开机时加载这些设定。

  1. $ sudo powertop --html
  2. Loaded 58 prior measurements
  3. Cannot load from file /var/cache/powertop/saved_parameters.powertop
  4. Preparing to take measurements
  5. Measuring 1 time(s) for 20 seconds each
  6. PowerTOP outputing using base filename powertop-20130915-231821.html

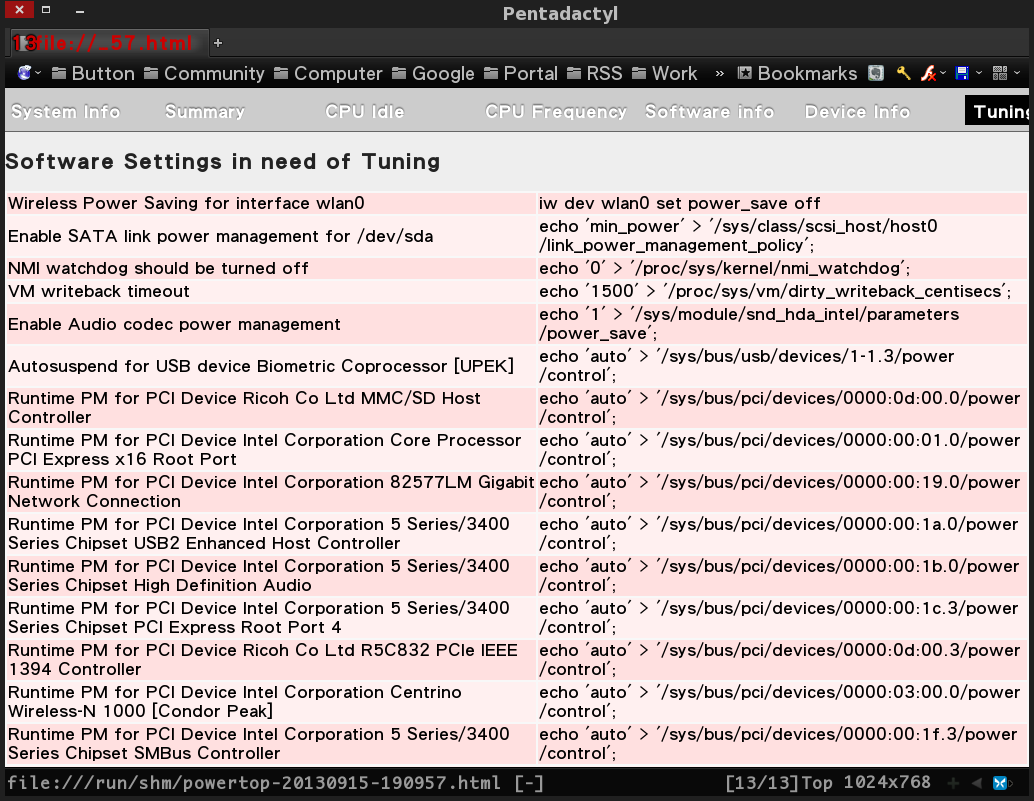

▲ 此报告将依个人环境而有所不同，其各项目的详细说明可参考 Power saving - ArchWiki 一文。

接着将调校的指令贴到一个 shell script 打包起来。

  1. $ sudo vi /usr/local/bin/powersave
  2. #!/bin/bash
  3. # PowerTop conifg for ThinkPad T410 on Debian Wheezy.
  5. # Wireless Power Saving for interface wlan0
  6. iw dev wlan0 set power_save off
  8. # Enable SATA link power management for /dev/sda
  9. echo 'min_power' > '/sys/class/scsi_host/host0/link_power_management_policy';
  11. # NMI watchdog should be turned off
  12. echo '0' > '/proc/sys/kernel/nmi_watchdog';
  14. # VM writeback timeout
  15. echo '1500' > '/proc/sys/vm/dirty_writeback_centisecs';
  17. # Enable Audio codec power management
  18. echo '1' > '/sys/module/snd_hda_intel/parameters/power_save';
  20. # Autosuspend for USB device Biometric Coprocessor [UPEK]
  21. echo 'auto' > '/sys/bus/usb/devices/1-1.3/power/control';
  23. # Runtime PM for PCI Device Ricoh Co Ltd MMC/SD Host Controller
  24. echo 'auto' > '/sys/bus/pci/devices/0000:0d:00.0/power/control';
  26. # Runtime PM for PCI Device Intel Corporation Core Processor PCI Express x16 Root Port
  27. echo 'auto' > '/sys/bus/pci/devices/0000:00:01.0/power/control';
  29. # Runtime PM for PCI Device Intel Corporation 82577LM Gigabit Network Connection
  30. echo 'auto' > '/sys/bus/pci/devices/0000:00:19.0/power/control';
  32. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller
  33. echo 'auto' > '/sys/bus/pci/devices/0000:00:1a.0/power/control';
  35. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset High Definition Audio
  36. echo 'auto' > '/sys/bus/pci/devices/0000:00:1b.0/power/control';
  38. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 4
  39. echo 'auto' > '/sys/bus/pci/devices/0000:00:1c.3/power/control';
  41. # Runtime PM for PCI Device Ricoh Co Ltd R5C832 PCIe IEEE 1394 Controller
  42. echo 'auto' > '/sys/bus/pci/devices/0000:0d:00.3/power/control';
  44. # Runtime PM for PCI Device Intel Corporation Centrino Wireless-N 1000 [Condor Peak]
  45. echo 'auto' > '/sys/bus/pci/devices/0000:03:00.0/power/control';
  47. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset SMBus Controller
  48. echo 'auto' > '/sys/bus/pci/devices/0000:00:1f.3/power/control';
  50. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset Thermal Subsystem
  51. echo 'auto' > '/sys/bus/pci/devices/0000:00:1f.6/power/control';
  53. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset 6 port SATA AHCI Controller
  54. echo 'auto' > '/sys/bus/pci/devices/0000:00:1f.2/power/control';
  56. # Runtime PM for PCI Device NVIDIA Corporation GT218 [NVS 3100M]
  57. echo 'auto' > '/sys/bus/pci/devices/0000:01:00.0/power/control';
  59. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller
  60. echo 'auto' > '/sys/bus/pci/devices/0000:00:1d.0/power/control';
  62. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1
  63. echo 'auto' > '/sys/bus/pci/devices/0000:00:1c.0/power/control';
  65. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 5
  66. echo 'auto' > '/sys/bus/pci/devices/0000:00:1c.4/power/control';
  68. # Runtime PM for PCI Device NVIDIA Corporation High Definition Audio Controller
  69. echo 'auto' > '/sys/bus/pci/devices/0000:01:00.1/power/control';
  71. # Runtime PM for PCI Device Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 2
  72. echo 'auto' > '/sys/bus/pci/devices/0000:00:1c.1/power/control';
  74. # Wake-on-lan status for device eth0
  75. #ethtool -s eth0 wol d;

给予执行权限。

  1. $ sudo chmod +x /usr/local/bin/powersave

因调校指令皆需管理者权限才可执行，若想省下打密码的功夫可参考 Firestarter 开机甭再次输入密码 一文修改。

  1. $ sudo visudo
  2. ......
  3. jonny   ALL= NOPASSWD:/usr/local/bin/powersave

现在开机时只需使用 sudo powersave 即可手动切换至省电模式。

若想加入开机自动启动可以参考 安装 indicator-virtualbox on Ubuntu 12.04 | 4. 加入开机自动启动 一文或使用较进阶的 udev 及 sysctl。

※ 注：请依个人需求自行调整，若造成系统不稳还请自行斟酌。

资料来源

  • PowerTOP - Wikipedia
  • Powertop - ArchWiki
  • 2.2. PowerTOP - Red Hat Customer Portal
  • 冷静: Powertop
