上一篇我们学习了【百度地图开发之三】百度地图UI控制功能讲解(点击跳转),今天继续看一下百度地图一些基本的操作功能的实现;
百度地图的一些基本操作控制包括地图的缩放,旋转,俯视,单双击,长按等控制事件,实现前面的三个功能主要需要用到MapController类,单双击,长按事件需要用到MapView的监听事件处理接口MKMapTouchListener
①:public float setZoom(float zoomLevel):设置地图的缩放级别,这个值的取值范围为[3,19];
②:public void setRotation(int rotate):设置地图的旋转角度
③:public void setOverlooking(int voidlook):设置地图的俯视角度
①:void onMapClick(GeoPoint point):地图单击事件,回调回来回来点击的地图的坐标点位置.
②:void onMapDoubleClick(GeoPoint point):地图双击事件,回调双击的地图的坐标点位置.
③:void onMapLongClick(GeoPoint point):地图的长按事件,回调长按的地图的坐标点位置.
我们只要在MapView对象中注册MKMapTouchListener监听器,并且实现其中的单击,双击,长按事件方法即可.具体实现方法如下:
/** * 设置地图点击事件监听 */ mapTouchListener = new MKMapTouchListener(){ @Override public void onMapClick(GeoPoint point) { touchType = "单击"; currentPt = point; updateMapState(); } @Override public void onMapDoubleClick(GeoPoint point) { touchType = "双击"; currentPt = point; updateMapState(); } @Override public void onMapLongClick(GeoPoint point) { touchType = "长按"; currentPt = point; updateMapState(); } }; //给地图注册事件 mMapView.regMapTouchListner(mapTouchListener);
1:MyApplication.java:进行BMapManager全局变量的设置和密钥验证,代码如下:
package com.ztt.baidumap.ui; import android.app.Application; import android.content.Context; import android.util.Log; import android.widget.Toast; import com.baidu.mapapi.BMapManager; import com.baidu.mapapi.MKGeneralListener; import com.baidu.mapapi.map.MKEvent; /** * 自定义Application,进行key识别验证 (使用单例) * @author Jiangqq * @time 2014/03/15 10:14 */ public class MyApplication extends Application { public static MyApplication instance=null; BMapManager mBMapManager = null; public boolean m_bKeyRight = true; public static final String strKey = "vUAGbPwLpolIqiwWisnQPeIE"; //百度地图官网申请的密钥 public static MyApplication getInstance(){ return instance; } @Override public void onCreate() { super.onCreate(); instance=this; //在APP应用启动的时候,进行初始化验证 initEngineManager(this); } /** * 进行验证key * @param pContext */ private void initEngineManager(Context pContext) { if (mBMapManager == null) { mBMapManager = new BMapManager(pContext); } if (!mBMapManager.init(strKey,new MyGeneralListener())) { Toast.makeText(MyApplication.getInstance(), "BMapManager 初始化错误!", Toast.LENGTH_LONG).show(); } } // 常用事件监听,用来处理通常的网络错误,授权验证错误等 static class MyGeneralListener implements MKGeneralListener { @Override public void onGetNetworkState(int iError) { if (iError == MKEvent.ERROR_NETWORK_CONNECT) { Toast.makeText(MyApplication.getInstance(), "您的网络出错啦!", Toast.LENGTH_LONG).show(); } else if (iError == MKEvent.ERROR_NETWORK_DATA) { Toast.makeText(MyApplication.getInstance(), "输入正确的检索条件!", Toast.LENGTH_LONG).show(); }else { Log.d("zttjiangqq", "iError="+iError); } // ... } @Override public void onGetPermissionState(int iError) { //非零值表示key验证未通过 if (iError != 0) { //授权Key错误: Toast.makeText(MyApplication.getInstance(), "请在 DemoApplication.java文件输入正确的授权Key,并检查您的网络连接是否正常!error: "+iError, Toast.LENGTH_LONG).show(); MyApplication.getInstance().m_bKeyRight = false; } else{ MyApplication.getInstance().m_bKeyRight = true; Toast.makeText(MyApplication.getInstance(), "key认证成功", Toast.LENGTH_LONG).show(); } } } }
2:布局文件:
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent"> <LinearLayout android:orientation="horizontal" android:layout_width="fill_parent" android:layout_height="50dip"> <Button android:id="@+id/zoombutton" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" android:background="@drawable/button_style" android:text="缩放" /> <EditText android:id="@+id/zoomlevel" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" android:text="10" /> <Button android:id="@+id/rotatebutton" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" android:background="@drawable/button_style" android:text="旋转" /> <EditText android:id="@+id/rotateangle" android:text="90" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" /> <Button android:id="@+id/overlookbutton" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" android:background="@drawable/button_style" android:text="俯视" /> <EditText android:id="@+id/overlookangle" android:text="-30" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_weight="1" /> </LinearLayout> <TextView android:id="@+id/state" android:text="点击、长按、双击地图以获取经纬度和地图状态" android:layout_width="fill_parent" android:layout_height="wrap_content" android:lines="3" /> <RelativeLayout android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" > <com.baidu.mapapi.map.MapView android:id="@+id/bmapView" android:layout_width="fill_parent" android:layout_height="fill_parent" android:clickable="true" /> <Button android:id="@+id/savescreen" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentTop="true" android:layout_alignParentRight="true" android:layout_marginTop="10dip" android:background="@drawable/button_style" android:text="截图" /> </RelativeLayout> </LinearLayout>
3:功能实现Activity代码:
package com.ztt.baidumap.ui; import java.io.File; import java.io.FileNotFoundException; import java.io.FileOutputStream; import java.io.IOException; import android.app.Activity; import android.graphics.Bitmap; import android.os.Bundle; import android.view.View; import android.view.View.OnClickListener; import android.widget.Button; import android.widget.EditText; import android.widget.TextView; import android.widget.Toast; import com.baidu.mapapi.BMapManager; import com.baidu.mapapi.map.MKMapTouchListener; import com.baidu.mapapi.map.MKMapViewListener; import com.baidu.mapapi.map.MapController; import com.baidu.mapapi.map.MapPoi; import com.baidu.mapapi.map.MapView; import com.baidu.platform.comapi.basestruct.GeoPoint; /** * 演示地图缩放,旋转,视角控制 */ public class MapControlDemo extends Activity { /** * MapView 是地图主控件 */ private MapView mMapView = null; /** * 用MapController完成地图控制 */ private MapController mMapController = null; /** * MKMapViewListener 用于处理地图事件回调 */ MKMapViewListener mMapListener = null; /** * 用于截获屏坐标 */ MKMapTouchListener mapTouchListener = null; /** * 当前地点击点 */ private GeoPoint currentPt = null; /** * 控制按钮 */ private Button zoomButton = null; //缩放 private Button rotateButton = null; //旋转 private Button overlookButton =null; //俯视 private Button saveScreenButton = null; //截图 /** * */ private String touchType = null; /** * 用于显示地图状态的面板 */ private TextView mStateBar = null; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); /** * 使用地图sdk前需先初始化BMapManager. * BMapManager是全局的,可为多个MapView共用,它需要地图模块创建前创建, * 并在地图地图模块销毁后销毁,只要还有地图模块在使用,BMapManager就不应该销毁 */ MyApplication app = (MyApplication)this.getApplication(); if (app.mBMapManager == null) { app.mBMapManager = new BMapManager(getApplicationContext()); /** * 如果BMapManager没有初始化则初始化BMapManager */ app.mBMapManager.init(MyApplication.strKey,new MyApplication.MyGeneralListener()); } /** * 由于MapView在setContentView()中初始化,所以它需要在BMapManager初始化之后 */ setContentView(R.layout.activity_mapcontrol); mMapView = (MapView)findViewById(R.id.bmapView); /** * 获取地图控制器 */ mMapController = mMapView.getController(); /** * 设置地图是否响应点击事件 . */ mMapController.enableClick(true); /** * 设置地图缩放级别 */ mMapController.setZoom(12); mStateBar = (TextView) findViewById(R.id.state); /** * 初始化地图事件监听 */ initListener(); /** * 将地图移动至天安门 * 使用百度经纬度坐标,可以通过http://api.map.baidu.com/lbsapi/getpoint/index.html查询地理坐标 * 如果需要在百度地图上显示使用其他坐标系统的位置,请发邮件至mapapi@baidu.com申请坐标转换接口 */ double cLat = 39.945 ; double cLon = 116.404 ; GeoPoint p = new GeoPoint((int)(cLat * 1E6), (int)(cLon * 1E6)); mMapController.setCenter(p); } /** * 添加监听事件 */ private void initListener() { /** * 设置地图点击事件监听 */ mapTouchListener = new MKMapTouchListener(){ @Override public void onMapClick(GeoPoint point) { touchType = "单击"; currentPt = point; updateMapState(); } @Override public void onMapDoubleClick(GeoPoint point) { touchType = "双击"; currentPt = point; updateMapState(); } @Override public void onMapLongClick(GeoPoint point) { touchType = "长按"; currentPt = point; updateMapState(); } }; //给地图注册事件 mMapView.regMapTouchListner(mapTouchListener); /** * 设置地图事件监听 */ mMapListener = new MKMapViewListener() { @Override public void onMapMoveFinish() { /** * 在此处理地图移动完成回调 * 缩放,平移等操作完成后,此回调被触发 */ updateMapState(); } @Override public void onClickMapPoi(MapPoi mapPoiInfo) { /** * 在此处理底图poi点击事件 * 显示底图poi名称并移动至该点 * 设置过: mMapController.enableClick(true); 时,此回调才能被触发 * */ } @Override public void onGetCurrentMap(Bitmap b) { /** * 当调用过 mMapView.getCurrentMap()后,此回调会被触发 * 可在此保存截图至存储设备 */ File file = new File("/mnt/sdcard/test.png"); FileOutputStream out; try{ out = new FileOutputStream(file); if(b.compress(Bitmap.CompressFormat.PNG, 70, out)) { out.flush(); out.close(); } Toast.makeText(MapControlDemo.this, "屏幕截图成功,图片存在: "+file.toString(), Toast.LENGTH_SHORT) .show(); } catch (FileNotFoundException e) { e.printStackTrace(); } catch (IOException e) { e.printStackTrace(); } } @Override public void onMapAnimationFinish() { /** * 地图完成带动画的操作(如: animationTo())后,此回调被触发 */ updateMapState(); } @Override public void onMapLoadFinish() { // TODO Auto-generated method stub } }; mMapView.regMapViewListener(MyApplication.getInstance().mBMapManager, mMapListener); /** * 设置按键监听 */ zoomButton = (Button)findViewById(R.id.zoombutton); rotateButton = (Button)findViewById(R.id.rotatebutton); overlookButton = (Button)findViewById(R.id.overlookbutton); saveScreenButton = (Button)findViewById(R.id.savescreen); OnClickListener onClickListener = new OnClickListener(){ @Override public void onClick(View view) { if ( view.equals(zoomButton)){ perfomZoom(); } else if( view.equals(rotateButton)){ perfomRotate(); } else if( view.equals(overlookButton)){ perfomOverlook(); } else if ( view.equals(saveScreenButton)){ //截图,在MKMapViewListener中保存图片 mMapView.getCurrentMap(); Toast.makeText(MapControlDemo.this, "正在截取屏幕图片...", Toast.LENGTH_SHORT ).show(); } updateMapState(); } }; zoomButton.setOnClickListener(onClickListener); rotateButton.setOnClickListener(onClickListener); overlookButton.setOnClickListener(onClickListener); saveScreenButton.setOnClickListener(onClickListener); } /** * 处理缩放 * sdk 缩放级别范围: [3.0,19.0] */ private void perfomZoom(){ EditText t = (EditText) findViewById(R.id.zoomlevel); try{ float zoomLevel = Float.parseFloat(t.getText().toString()); //设置地图缩放级别 mMapController.setZoom(zoomLevel); }catch(NumberFormatException e){ Toast.makeText(this, "请输入正确的缩放级别", Toast.LENGTH_SHORT) .show(); } } /** * 处理旋转 * 旋转角范围: -180 ~ 180 , 单位:度 逆时针旋转 */ private void perfomRotate(){ EditText t = (EditText) findViewById(R.id.rotateangle); try{ int rotateAngle = Integer.parseInt(t.getText().toString()); //设置地图旋转角度 mMapController.setRotation(rotateAngle); }catch(NumberFormatException e){ Toast.makeText(this, "请输入正确的旋转角度", Toast.LENGTH_SHORT) .show(); } } /** * 处理俯视 * 俯角范围: -45 ~ 0 , 单位: 度 */ private void perfomOverlook(){ EditText t = (EditText) findViewById(R.id.overlookangle); try{ int overlookAngle = Integer.parseInt(t.getText().toString()); //设置地图的俯视 mMapController.setOverlooking(overlookAngle); }catch(NumberFormatException e){ Toast.makeText(this, "请输入正确的俯角", Toast.LENGTH_SHORT) .show(); } } /** * 更新地图状态显示面板 */ private void updateMapState(){ if ( mStateBar == null){ return ; } String state = ""; if ( currentPt == null ){ state = "点击、长按、双击地图以获取经纬度和地图状态"; } else{ state = String.format(touchType+",当前经度 : %f 当前纬度:%f",currentPt.getLongitudeE6()*1E-6,currentPt.getLatitudeE6()*1E-6); } state += "\n"; state += String.format("zoom level= %.1f rotate angle= %d overlaylook angle= %d", mMapView.getZoomLevel(), mMapView.getMapRotation(), mMapView.getMapOverlooking() ); mStateBar.setText(state); } @Override protected void onPause() { /** * MapView的生命周期与Activity同步,当activity挂起时需调用MapView.onPause() */ mMapView.onPause(); super.onPause(); } @Override protected void onResume() { /** * MapView的生命周期与Activity同步,当activity恢复时需调用MapView.onResume() */ mMapView.onResume(); super.onResume(); } @Override protected void onDestroy() { /** * MapView的生命周期与Activity同步,当activity销毁时需调用MapView.destroy() */ mMapView.destroy(); super.onDestroy(); } @Override protected void onSaveInstanceState(Bundle outState) { super.onSaveInstanceState(outState); mMapView.onSaveInstanceState(outState); } @Override protected void onRestoreInstanceState(Bundle savedInstanceState) { super.onRestoreInstanceState(savedInstanceState); mMapView.onRestoreInstanceState(savedInstanceState); } }

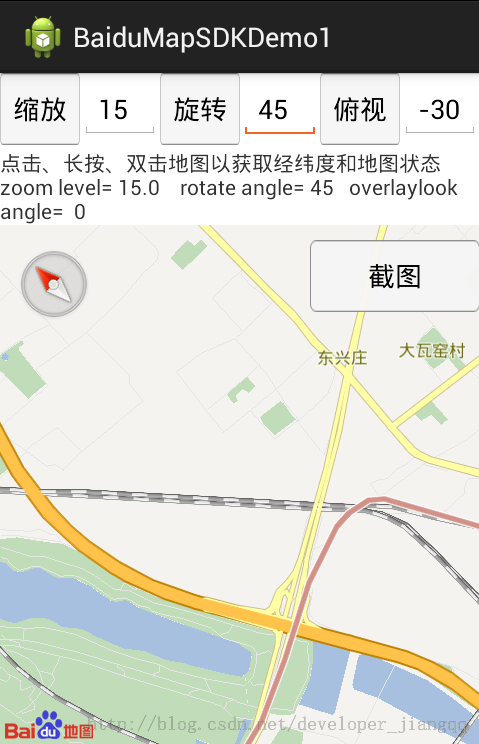

4:运行截图:
[注明]AndroidManifest.xml的配置和之前的文章中一样.
