Windows Mobile引路蜂地图开发示例:路径查询

jerry 地图开发 2015年11月26日 收藏

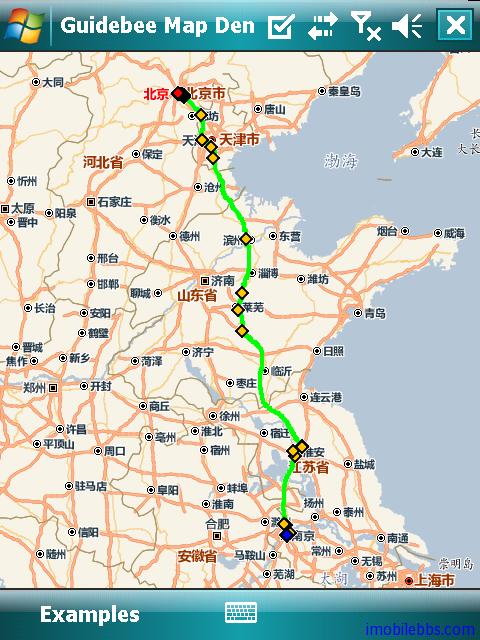

可以通过RasterMap的getDirection()方法来查询路径,和查询地址类似,路径查询的结果也是通过回调函数的方式来通知应用程序的,下面的例子返回南京到北京的路径。返回结果存放在MapDirection中,MapDirection包含了路径的详细信息,包括路径的每个步骤,长度,时间,方向等。

在MainFrom上添加一个mnuGetDirection菜单项,并让MainForm实现IRoutingListener接口用于响应路径查询结果。

  1. public void Done(string query, MapDirection result)
  2. {
  3.  if (result != null)
  4.  {
  5.   _rasterMap.SetMapDirection(result);
  6.   _rasterMap.Resize(result.Bound);
  7.  }
  8. }
  9.
  10. ....
  11. private void mnuGetDirection_Click(object sender, EventArgs e)
  12. {
  13.  String name1 = "南京";
  14.  String name2 = "北京";
  15.  _rasterMap.GetDirections("from: " + name1 + " to: " + name2);
  16.
  17. }

地图服务可以选择使用Google 地图服务,CloudMade地图服务,在中国还可能选择MapAbc地图服务,缺省使用Google 地图服务。
getDirections()具有三个重载函数,例子中是采用的文字描述方式。上述示例采用了from: address1 to: address2 的格式, CloudMade地图服务和MapAbc地图服务则必需采用 经度1,纬度1,经度2,纬度2和格式。
为避免混淆,可以使用下述格式。
public void getDirection(GeoLatLng[] waypoints, IRoutingListener listener);
其中 waypoints 为途径点坐标数组经纬值,可以支持多点路径查询。
此外对于MapAbc 地图服务,还可以指定城市编码,如南京编码为25。
public void getDirection(int citycode,String query, IRoutingListener listener);
